CFS Cyclones

CFS Hydrocyclones are involute entry design for low pressure operation. The hydrocyclone presorts materials prior to entry into the cyclone. The design is modular to isolate wear. Each cyclone is made of cast urethane with steel exterior. Most CFS Hydrocyclones have a full thickness of one inch, which gives our cyclones some of the best wear characteristics in the business. With the combination of highly efficient performance and extremely low maintenance, the CFS Cyclone provides years of trouble free service.

The CFS Hydrocyclones have been widely used in plants around the world and could be the best hydocyclone on the market. An average life of a Model 2600 CFS Cyclone in a sand plant exceeds twenty years.

CFS Cyclones are Made in the USA from only the best materials and can easily be broken down for maintenance.

Cyclones are one of the most under-utilized pieces of equipment in an aggregate plant.

Cyclone constructionCyclone

CFS produces the following sizes for any application:

12″  18″  24″  26″

CFS 2600 Hydrocyclones have been proven in the following applications:

Primary Dewatering CyclonesDewatering

Dewaters product up

to 65% – 75% solids

Side Mounted CycloneMaximum Product Recovery

Better than going

over a weir.

Gravity Cyclone Use Gravity As Your PumpRemove Contamination

Provides desliming and

clay removal.

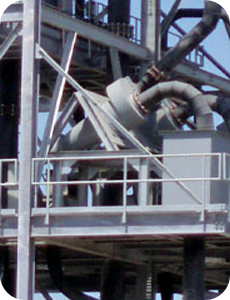

Gravity Cyclone

Use Gravity as your pump

CFS Gravity Cyclones allow you to:

Use Gravity As Your Pump

Establish the required PSI by using

the height of your tower.

Dewater Product

Dewaters product up to 65% -75% solids

Remove Contamination

Provides desliming and clay removal

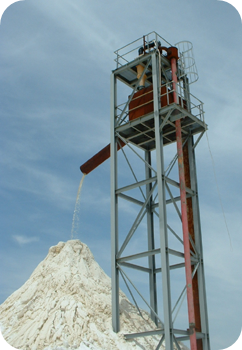

Stockpyle Cyclones

Recovery Cyclone

Cyclone Stockpiling

allows you to:

  • Dewater, Deslime and Stockpile products.

  • Create large stockpiles without belts or conveyors.

  • Create a simple, low cost, but effective way to stockpile sand products.

Stockpiling Cyclone

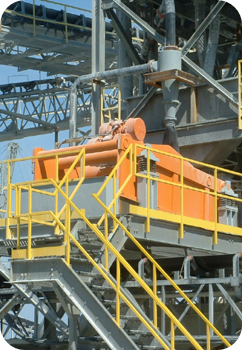

Recovery Cyclones allow you to:

  • Recover any loss of material in tailings or deck throughs.

  • Reduces pond maintenance and pond cleaning cost.

  • Recover lost solids down to 400 Mesh or 37 micron.

Recovery Cyclone
